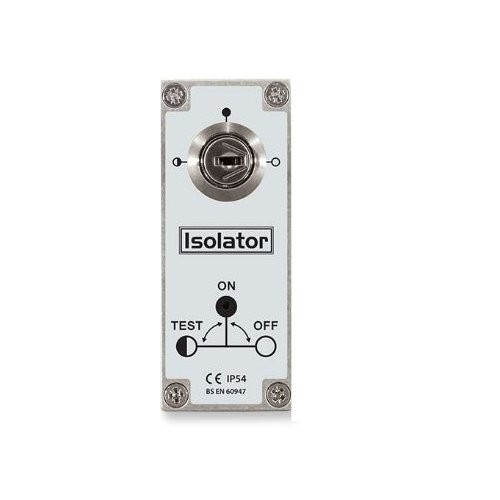

This isolator switch camera contains a high resolution dual output CCTV camera which can be used with your existing Analogue’ CCTV systems or 1080p HD-TVI systems.

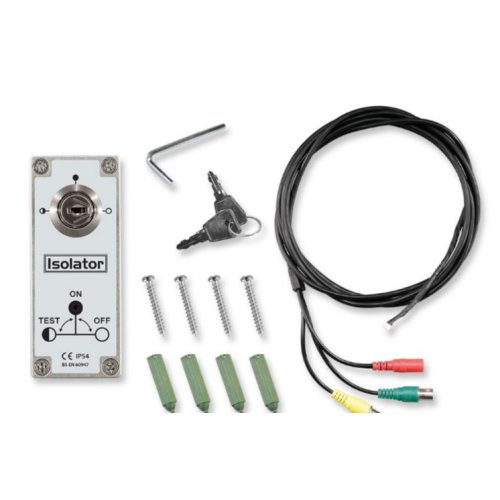

The metal casing hides a tiny HD module camera with a 3.7mm fixed pinhole lens. The unique connection lead has been designed specifically for this camera. The ultra-thin 3m lead terminates into 2 BNC (1x TVI, 1x CVBS) and a 2.1mm DC socket. The extra-long 3m lead enables the connections to be hidden far from the camera for a truly covert installation.
These are perfect for installation on door frames and walls.
Specifications
Image Sensor 1/2.8″ Sony CMOS.
Resolution 1080P.
Lens 3.6mm Board.
Day/Night Electronic.
Input Voltage 12V DC.
Current 110mA.
Video Connection BNC (HD-TVI & Analogue).
Power Connection 2.1mm DC Socket.
WDR Yes.
Backlight Comp BLC & HLC.
Privacy Masking 8 Zone.
Noise Reduction DNR.
Digital Zoom 8x.
Cabling 3m Fly Lead Supplied.
White Balance Auto.
Dimensions 92 x 38 x 31mm.
