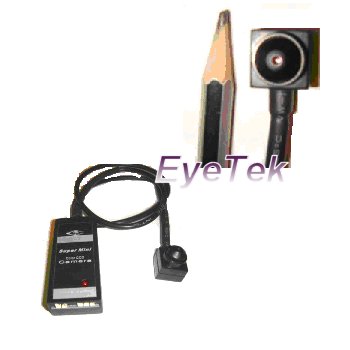

The AV and power supply cable plugs into the main body of the camera. This makes this ideal for concealing the camera in very tight spaces. Can also be used by passing the lens through a small gap or opening inside a room to view or check without entering. Also has audio.
Image Device 1/4″ SONY CCD
Number of Pixels PAL: (H)500x(V)582
Scanning System PAL: 625 Lines, 50 Field/Sec
Sync System Internal Synchronization
Horizontal Resolution 420 TV Line
Video output 1Vp-p 75 ?? , Negative
White Balance Auto
S/N Ratio More Than 46dB
Gamma Characteristic 0.45
Minimum Illumination 0.5 Lux
Electronic Shutter PAL : 1/50~1/100,000 Sec
Built-In Lens f: 3.7mm cone pinhole lens
Power Consumption 12V??10%DC?? 100mA
Dimension 12×12 mm
